k8s/fabric-x.yaml

fabric-x.yaml is the default Kubernetes sample. It deploys a complete Fabric-X network with Fabric CA, PostgreSQL, TLS, mTLS, and selected NodePort exposure.

Use it as the baseline when validating Kubernetes workloads, services, storage, and externally reachable endpoints.

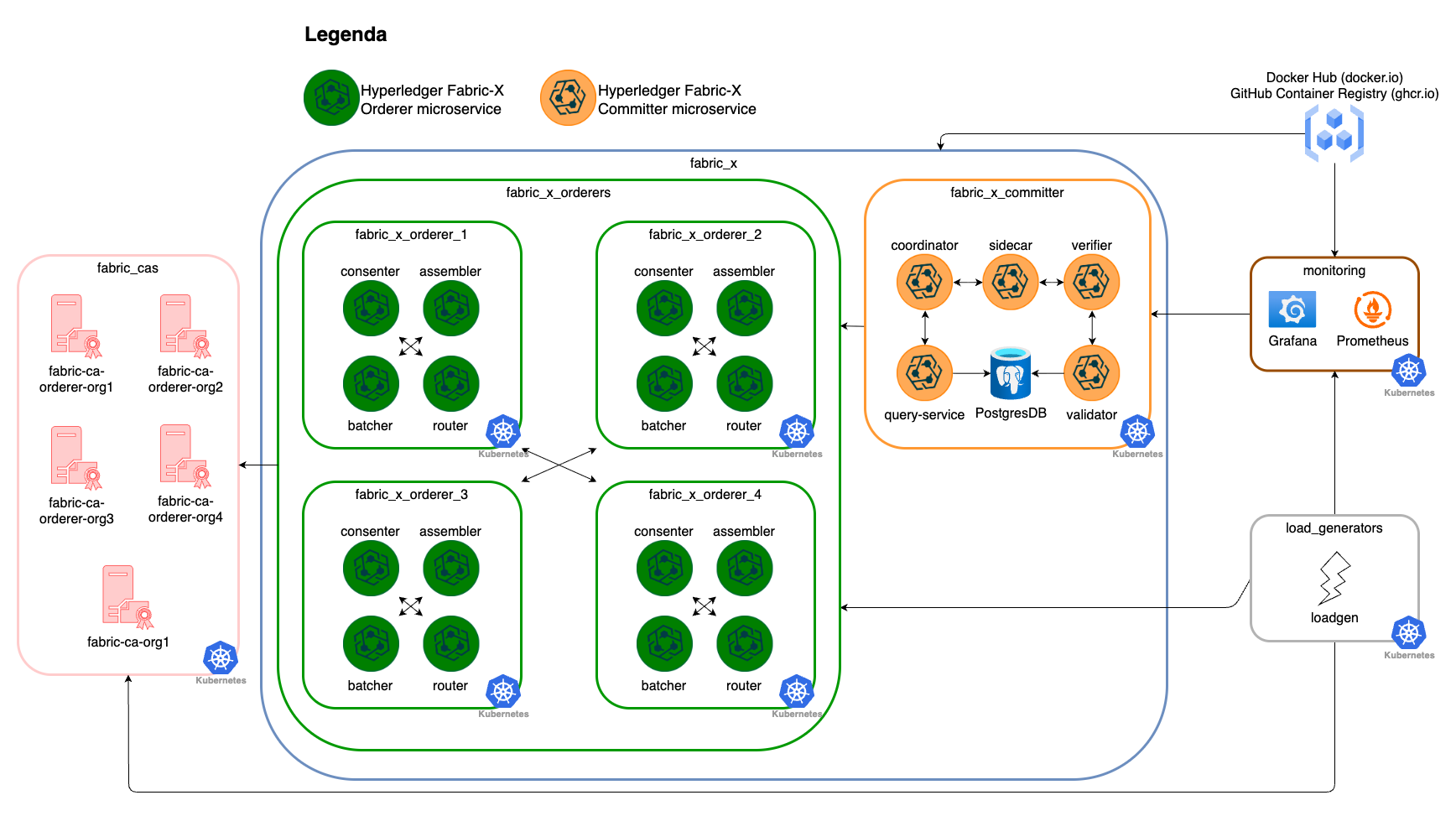

Network Diagram

The diagram below summarizes this inventory's Fabric-X services and how they fit together.

Kubernetes Fabric-X inventory

Inventory Details

Fabric CA, CA databases, orderer, committer, PostgreSQL, load generator, node exporter, Prometheus, and Grafana use Kubernetes task paths. Ansible still runs from the control node, but inventory hosts represent Kubernetes resources rather than SSH machines.

This inventory deploys these logical services as Kubernetes workloads and services:

  • 5 Fabric CA servers and 5 PostgreSQL databases for Fabric CA state.
  • 4 orderer groups. Each group has 1 router, 1 consenter, 1 assembler, and 1 batcher.
  • 1 committer with validator, verifier, coordinator, sidecar, query service, and PostgreSQL storage.
  • 1 load generator.
  • Monitoring with node exporter, PostgreSQL exporter, Prometheus, and Grafana.
flowchart TD
  all --> network
  network --> fabric_cas
  network --> fabric_x
  all --> load_generators
  all --> monitoring
  fabric_cas --> fabric_ca_servers
  fabric_cas --> fabric_ca_dbs
  fabric_x --> fabric_x_orderers
  fabric_x --> fabric_x_committer
  fabric_x_orderers --> orderer_groups["fabric_x_orderer_1..4"]
  fabric_x_committer --> committer_services["validator, verifier, coordinator, sidecar, query service"]
  fabric_x_committer --> committer_db["committer-db PostgreSQL"]

This is the Kubernetes equivalent of the default local inventory. External-facing services use fixed NodePort values, while internal services stay behind ClusterIP services.

actual_host defaults to K8S_NODE_IP or localhost for services that must be reachable through NodePort.
