local/fabric-x-cryptogen.yaml

fabric-x-cryptogen.yaml runs the local container topology without Fabric CA services. Crypto material is generated on the control node with cryptogen.

Use it for fast, repeatable local tests where Fabric CA enrollment is not under test.

Warning

This inventory is intended for debugging and repeatable test runs. For production-style deployments, start from the Fabric CA based local/fabric-x.yaml inventory instead.

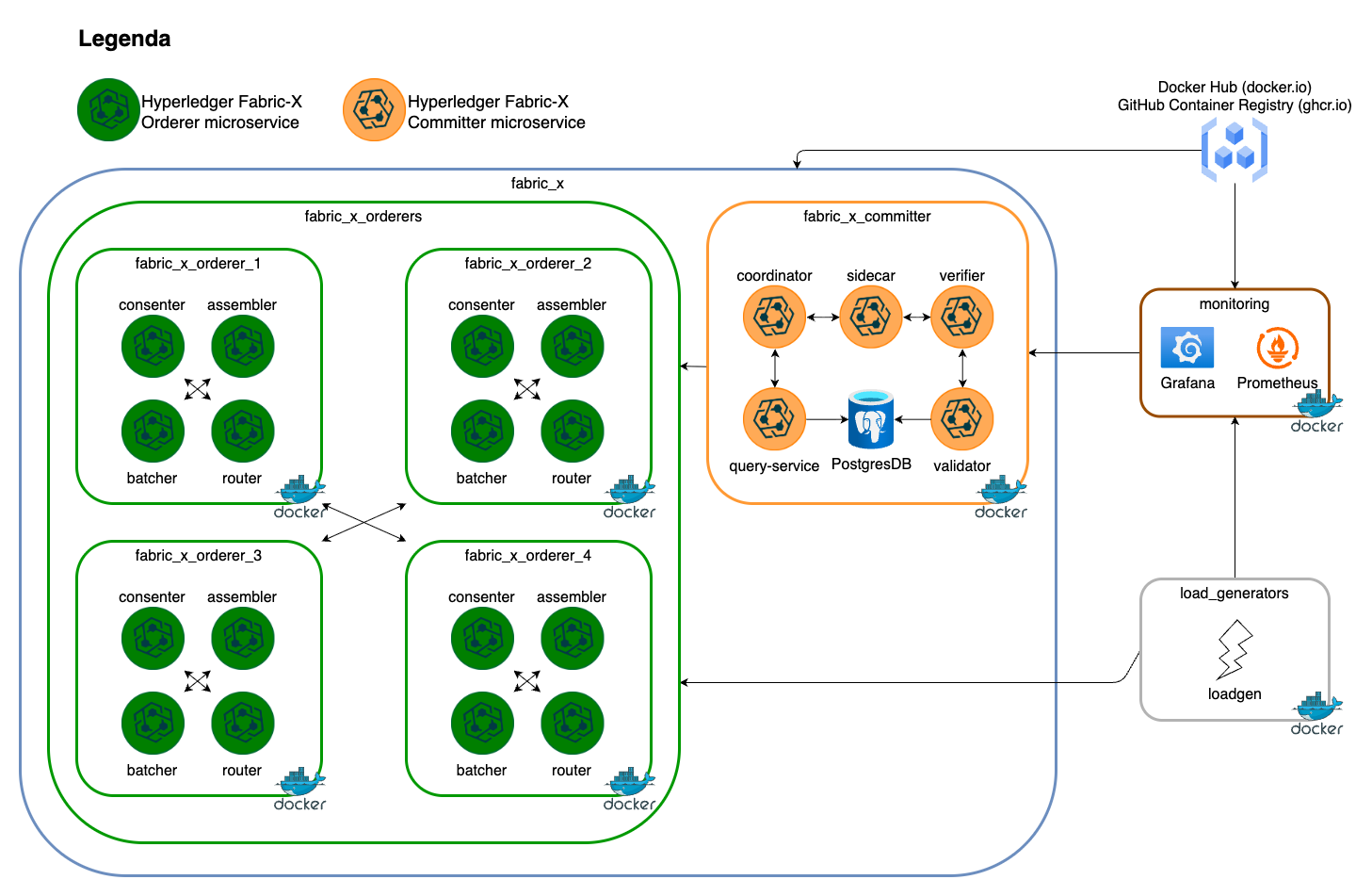

Network Diagram

The diagram below summarizes this inventory's Fabric-X services and how they fit together.

Inventory Details

The Fabric-X services, PostgreSQL, load generator, and monitoring stack run as local containers. cryptogen runs on the control node and writes artifacts below cryptogen_artifacts_dir.

This inventory deploys these logical services on the local machine:

• No Fabric CA servers or Fabric CA databases.
• 4 orderer groups. Each group has 1 router, 1 consenter, 1 assembler, and 1 batcher.
• 1 committer with validator, verifier, coordinator, sidecar, query service, and PostgreSQL storage.
• 1 Block Explorer server and UI with PostgreSQL storage, streaming blocks from the committer sidecar.
• 1 load generator.
• Monitoring with node exporter, PostgreSQL exporter, cAdvisor, Prometheus, Grafana, Loki, and Alloy.

flowchart TD
  all --> network
  network --> fabric_x
  all --> load_generators
  all --> monitoring
  monitoring --> prometheus
  monitoring --> grafana
  monitoring --> loki
  monitoring --> alloy
  monitoring --> node_exporter
  monitoring --> postgres_exporter
  monitoring --> cadvisor
  grafana --> prometheus
  grafana --> loki
  alloy --> loki
  prometheus --> node_exporter
  prometheus --> postgres_exporter
  prometheus --> cadvisor
  fabric_x --> fabric_x_orderers
  fabric_x --> fabric_x_committers
  fabric_x --> fabric_x_block_explorer
  fabric_x_committers --> fabric_x_committer
  fabric_x_orderers --> fabric_x_orderer_1
  fabric_x_orderers --> fabric_x_orderer_2
  fabric_x_orderers --> fabric_x_orderer_3
  fabric_x_orderers --> fabric_x_orderer_4

Fabric CA is omitted entirely. Certificates and keys are generated centrally before the local container services consume them.
