k8s/fabric-x-evm.yaml

fabric-x-evm.yaml is the Kubernetes equivalent of local/fabric-x-evm.yaml: the default Kubernetes network with the Fabric-X EVM gateway attached, exposed through NodePort.

Use it to validate the EVM gateway's StatefulSet, PersistentVolumeClaim, Services, and probes on Kubernetes.

Network Diagram

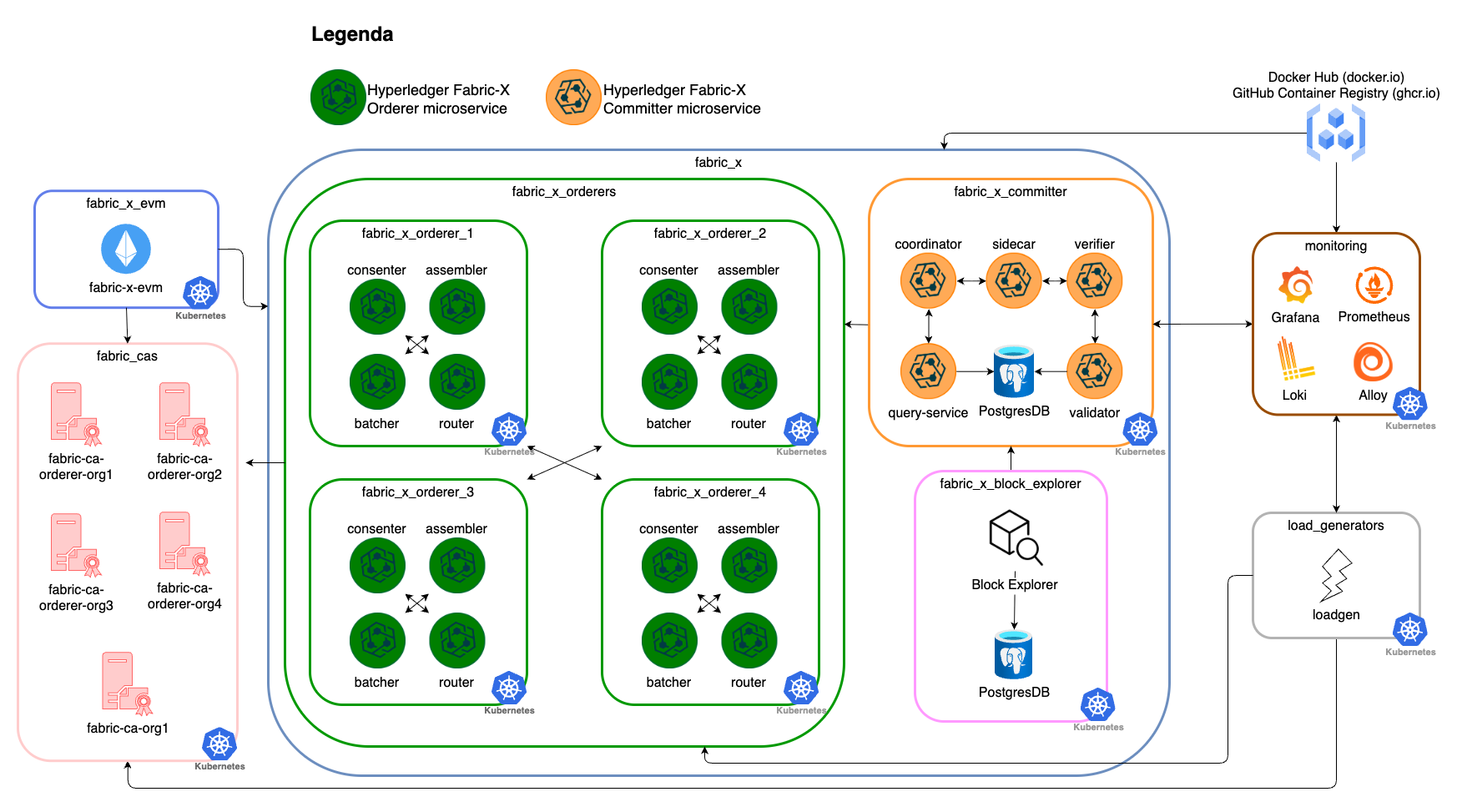

The diagram below summarizes this inventory's Fabric-X services and how they fit together.

k8s Fabric-X-EVM inventory

Inventory Details

This inventory deploys the same Kubernetes workloads as the default Kubernetes sample (fabric-x.yaml), plus one EVM gateway workload:

  • 5 Fabric CA servers and 5 PostgreSQL databases for Fabric CA state.
  • 4 orderer groups. Each group has 1 router, 1 consenter, 1 assembler, and 1 batcher.
  • 1 committer with validator, verifier, coordinator, sidecar, query service, and PostgreSQL storage.
  • 1 Block Explorer server and UI with PostgreSQL storage, streaming blocks from the committer sidecar and exposed through NodePort.
  • 1 Fabric-X EVM gateway, deployed as a StatefulSet with a PersistentVolumeClaim for its state, exposed through NodePort 30545.
  • 1 load generator.
  • Monitoring with node exporter, PostgreSQL exporter, Prometheus, Grafana, Loki, and Alloy.

fabric-x-evm is enrolled with Fabric CA in Org1 — the same organization already trusted by the committer and orderers — so no additional mTLS trust configuration is required. evm_persist_state: true (the default) makes the StatefulSet request a 500Mi PersistentVolumeClaim (k8s_storage_size) for the gateway's and embedded endorser's SQLite state; k8s_storage_class can be set to pin a specific StorageClass.

The pod's readiness and liveness probes use tcpSocket, not httpGet: the gateway's only HTTP route is JSON-RPC POST /, and it does not open that listener until its embedded endorser has synchronized with the committer sidecar, so a passing probe already proves Fabric-X connectivity.

Using the JSON-RPC endpoint

actual_host defaults to K8S_NODE_IP or localhost. Once started, the gateway serves Ethereum JSON-RPC (and WebSocket, on the same port) at http://<actual_host>:30545, chain ID 4011 (0xfab):

curl -s -X POST -H 'Content-Type: application/json' \
  --data '{"jsonrpc":"2.0","id":1,"method":"eth_chainId","params":[]}' \
  http://localhost:30545

Point Foundry, Hardhat, or MetaMask at that URL and chain ID. See hyperledger/fabric-x-evm for details and caveats.
