local/fabric-x-evm.yaml

fabric-x-evm.yaml runs the default local container network with the Fabric-X EVM gateway attached, so Ethereum-style JSON-RPC clients (Hardhat, Foundry, MetaMask) can submit transactions against it.

Use this inventory when you want the baseline single-machine Fabric-X network plus an Ethereum JSON-RPC endpoint.

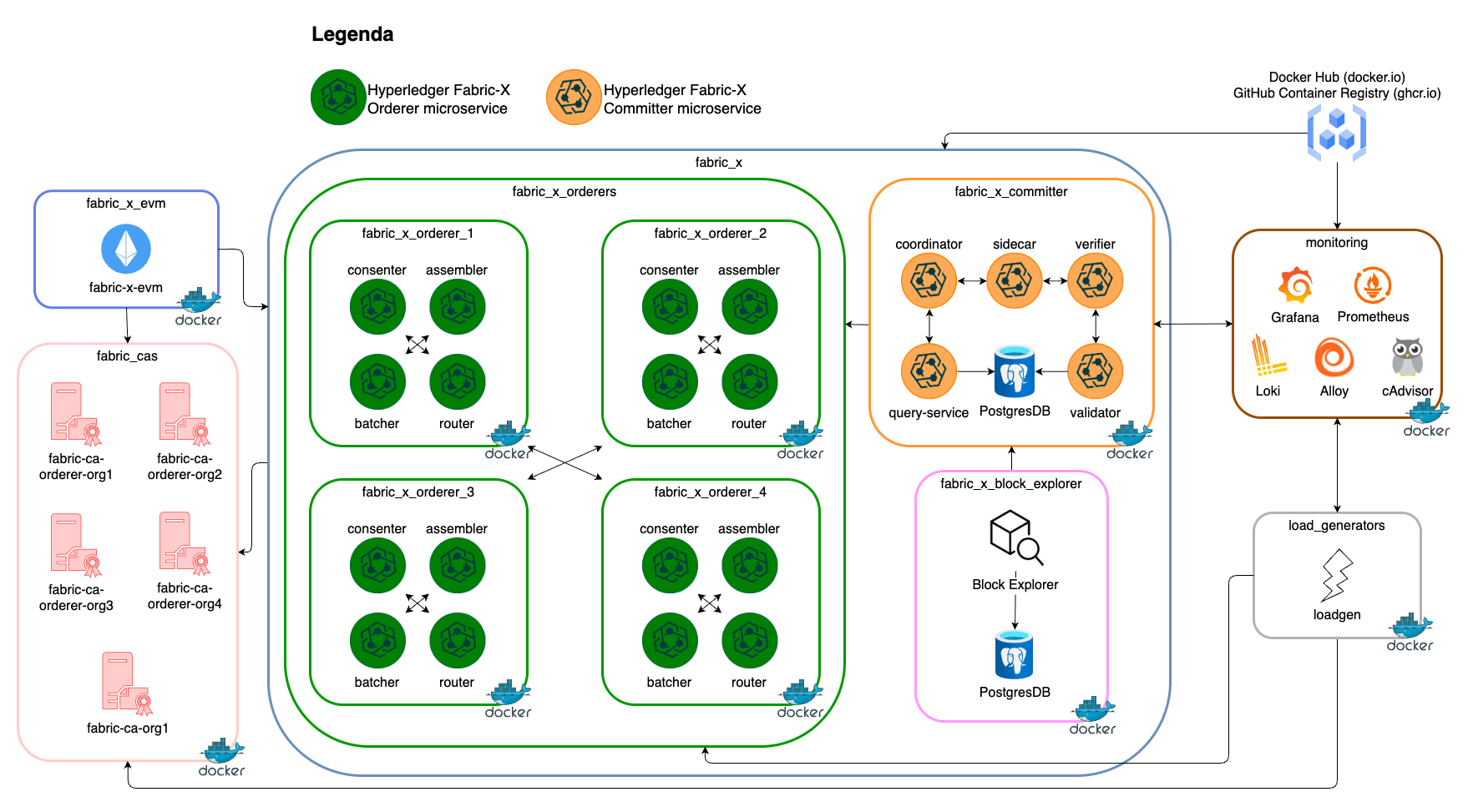

Network Diagram

The diagram below summarizes this inventory's Fabric-X services and how they fit together.

local Fabric-X-EVM inventory

Inventory Details

This inventory deploys the same service layout as the default local sample (fabric-x.yaml), plus one EVM gateway host:

  • 5 Fabric CA servers and 5 PostgreSQL databases for Fabric CA state.
  • 4 orderer groups. Each group has 1 router, 1 consenter, 1 assembler, and 1 batcher.
  • 1 committer with validator, verifier, coordinator, sidecar, query service, and PostgreSQL storage.
  • 1 Block Explorer server and UI with PostgreSQL storage, streaming blocks from the committer sidecar.
  • 1 Fabric-X EVM gateway, with an embedded endorser, submitting to every orderer router and synchronizing with the committer sidecar.
  • 1 load generator.
  • Monitoring with node exporter, PostgreSQL exporter, cAdvisor, Prometheus, Grafana, Loki, and Alloy.

The fabric-x-evm host is enrolled with Fabric CA in Org1 — the same organization already trusted by the committer and orderers — so no additional mTLS trust configuration (committer_mtls_clients, orderer_mtls_clients/orderer_mtls_orgs) is required. It declares one namespace (basic, threshold policy) under organization.namespaces; fxconfig creates it during make init from the fabric-x-evm user's signing certificate.

State is persisted by default (evm_persist_state: true): the gateway's block/transaction/log index and the embedded endorser's ledger are written to SQLite files under the host's data directory, so a restart resumes from where it left off instead of re-syncing from block 0.

Using the JSON-RPC endpoint

Once started, the gateway serves Ethereum JSON-RPC (and WebSocket, on the same port) at http://localhost:8545, chain ID 4011 (0xfab):

curl -s -X POST -H 'Content-Type: application/json' \
  --data '{"jsonrpc":"2.0","id":1,"method":"eth_chainId","params":[]}' \
  http://localhost:8545

Point Foundry, Hardhat, or MetaMask at that URL and chain ID — any Solidity tutorial works unchanged, gas is free, and any signing key is accepted. See hyperledger/fabric-x-evm for details and caveats.
